Product name: PE pipe production line
PE casing pipe production line
PE preservation pipe production line
The usage of the pipe: cold air conduit
Steam conduit
Hot water supply
The pipe structure: inner steel pipe or CF-RTP pipe
Middle: PU FOAM for heat insulation
Out layer: PE casing
Our advantage: we spent few years to test the new technology for big diameter of casing pipe production with lower cost and lower power consumption. At present we can make pipe from 160mm to 3000mm with new winding technology.
For example for pipe 600mm-1900mm production line, our machine cost has reduce 60%, and the electric power request is only 110KVA total.
The Main machine
|
Pipe diameter |
Main extruder |
Power consumption |
|
160-315mm |
SJ90 |
110KW |
|
250-400mm |
SJ90 |
110KW |
|
260-600mm |
SJ90 |
110KW |
|
670-1800mm |
SJ90 |
110KW |
|
800-2400mm |
SJ120 |
150KW |
|
1400-3000mm |
SJ120 |
150KW |

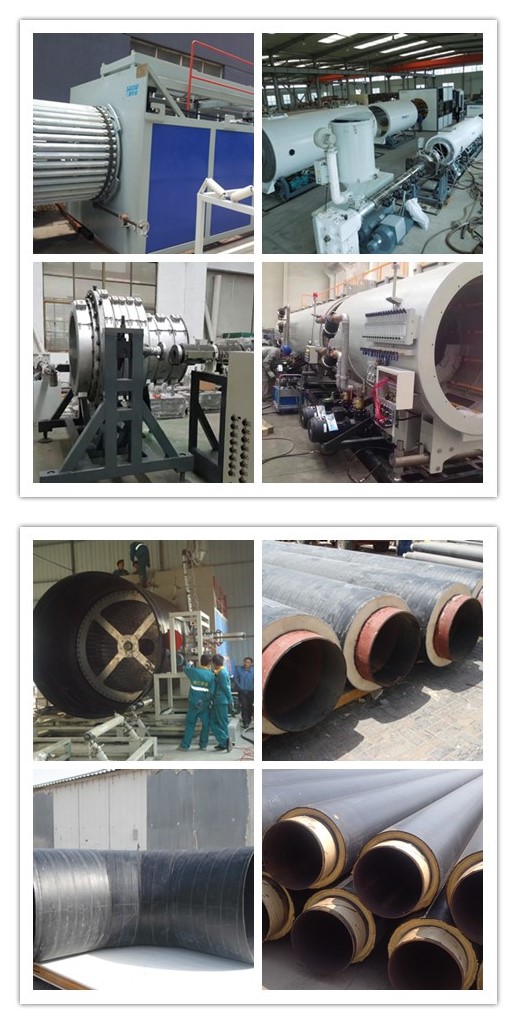

Photo:
產品名稱: PE夾克管生產線
PE保護套管生產線
聚乙烯保溫管生產線
管道的使用:
空調集中輸送冷氣管道
蒸汽運輸管道
熱水輸送管道
管狀結構:
內層:鋼管
中層:用于保溫的聚氨酯泡沫
外層:HDPE套管
我們的優勢是
本公司經多年不斷研究測試新的工藝，用低成本和低能耗來測試保溫管的大直徑。目前，我們可以用新的纏繞技術將管道從160毫米纏繞至3000毫米。
以600mm-1900mm生產線為例，我們的機器成本降低了60%，而電力要求僅為110KVA。
主要的機器
|
管的直徑 |
主擠出機 |
電力消耗 |
|
160-315mm |
SJ90 |
110KW |
|
250-400mm |
SJ90 |
110KW |
|
260-600mm |
SJ90 |
110KW |
|
670-1800mm |
SJ90 |
110KW |
|
800-2400mm |
SJ120 |
150KW |
|
1400-3000mm |
SJ120 |
150KW |
